1.Product Overview

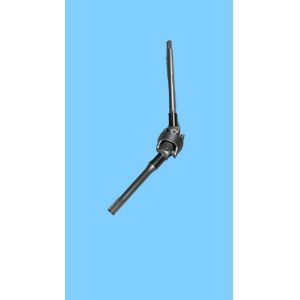

The wheel-end double universal drive shaft for wheeled vehicles is a universal transmission component featuring modular design, suitable for various wheeled vehicles and special equipment. With an innovative double universal joint structure and optimized axle design, it achieves a 15% improvement in transmission efficiency and a 50% extension in service life, making it an ideal choice for upgrading wheeled vehicle transmission systems.
2. Core Advantages
(1) Universal Compatibility
Supports multiple shaft diameters from Φ30-Φ70mm
Customizable specifications: Static torsional strength of 1000-100,000 Nm
(2) High-Efficiency Power Transmission
Double universal joint structure, transmission efficiency ≥97%
Dynamic balance grade G6.3
Maximum working angle of 48°
(3) Superior Durability
Forged from high-strength chromium-molybdenum alloy steel with high tensile strength
Multi-layered composite sealing structure with five sealing edges, offering excellent sand and mud resistance
Wide operating temperature range of -45℃ to +120℃, ensuring stable performance in extreme cold and heat
3. Technical Parameters
| Parameter |
Value |
Remarks |
| Rated Torque |
1000-9000 N·m |
|
| Peak Torque |
2000-18000 N·m |
|
| Maximum Articulation Angle |
48° |
|
| Speed Range |
0-3000 r/min |
|
| Operating Temperature |
-45℃ to +120℃ |
|
4. Typical Applications
(1) Airport tow tractors
(2) Oilfield vehicles
(3) Forest fire trucks
(4) Desert vehicles
5. Quality Assurance System
IATF 16949:2016 certified quality management system
100% factory testing (magnetic particle inspection, torque testing, etc.)
6. Customization Services
Supports non-standard size customization
Provides multiple surface treatment options
